VCA Ai Bridge ABPvax VCA Server mit Lizenz 3ch ALPR oder 2x ALPR und 2x NX - 241832

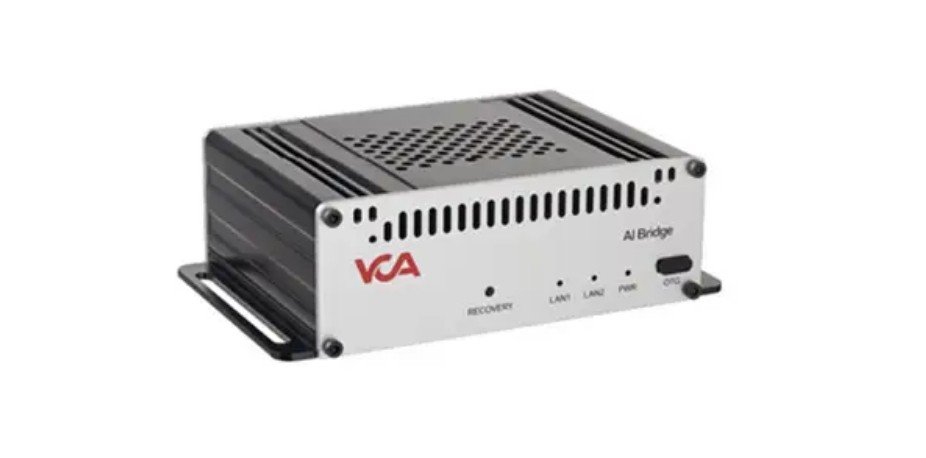

Die VCA AI Bridge ist eine kleine Hardware-Plattform, die branchenführende Deep-Learning-Videoanalyse für Ereignisbenachrichtigungen bietet.
Ideal für Standorte mit bis zu 3ch ALPR oder 2ch ALPR und 2 NX

Mehr Details zu VCA Technology siehe https://vcatechnology.com/video-analytics/number-plate-recognition/

Technische Daten BOX Only:

DESCRIPTION	VCA AI Bridge
Service
VCAserver
Channel Support	Up to 12 Channels using the deep learning object tracker (ProAi licence required).
Event Rules	Intrusion detection, Tamper detection, Enter &amp exit filters, Appear &amp Disappear filters, Stopping filter, Dwell filter, Direction filter, Counting, Abandoned object filter, Removed object filter, Zones &amp lines, Speed filter, 3D calibration, Tailgating filter, Logical rules
Event Actions	E-mail, TCP, HTTP
VCAforensics	Providing advanced appearance searches using analytic metadata from VCAserver
Channel Support	Up to xx Channels (VCAserver deep learning) object tracker configuration required).
System
Services	VCAserver Optional: VCAforensics
Operating System	Ubuntu 20.04 LTS Desktop
Core Module	Orin Nano 8GB
GPU	1024-core Ampere, with 32 Tensor Cores
System Drive	250Gb, M.2 NVME
Network	1Gb Ethernet
Ports
USB	2 x USB 3.1 Gens (Type-A)
Video (GPU)	1 x micro HDMI
Network	2 x RJ-45
GENERAL
Power Source	DC 12V/3A (1 x DC power jack)
Power Consumption	TBD
Operating Temperature	0°C ~ 40°C
Humidity	20% – 85% RH
Dimensions	128.5mm(W) x 39.1mm(H) x 79mm(D)
Weight	Approx. 350g
Housing Color &amp Material	Black/Silver &amp Metal
