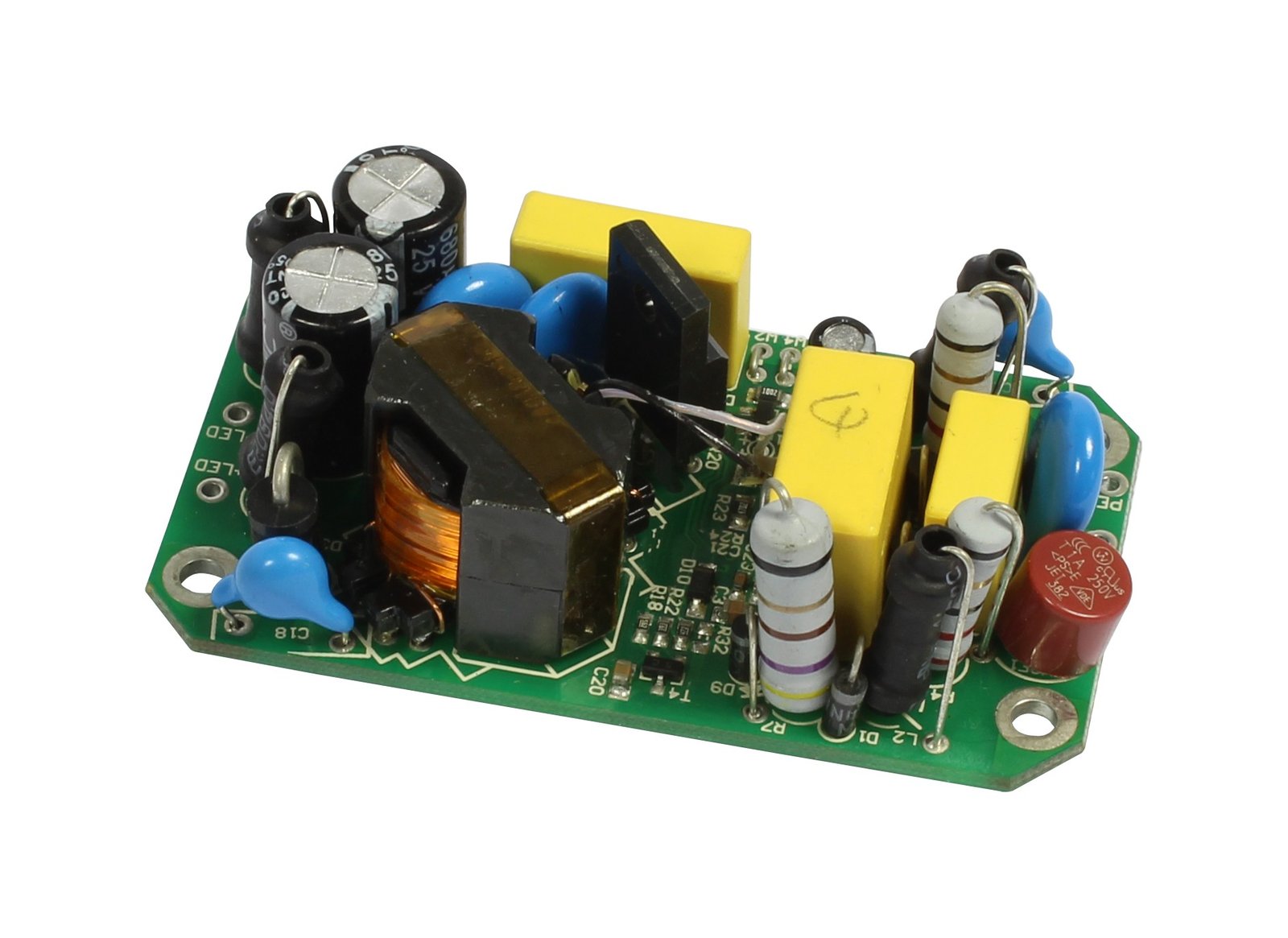

Synergy 21 Netzteil - CC Driver ALL1082 7-21W - 99804

Das Netzteil ALL1082 ist ein primär dimmbares,
leistungsgeregeltes Netzteil

Anwendungsbereich: 7-21W für z.B. 10W, 20W Baustrahler

– Input voltage (normal mode): 207 to 253Vac (47 to 63Hz)
– Accepted input voltage: 180 to 270Vac (current maybe vary, refer to diagrams)
– Primary dimmable via phase-cut dimmers (leading/trailing edge dimmers)
– Inrush current: &lt300mA
– Output power range: 6.4 to 20W (±10%)
– Constant power behaviour (CP)
– Output voltage range: 8 to 20V (refer to diagrams)
– Output OVP shutdown: 21 to 26V
– Startup time: typical 250ms
– Ramp-up time to full light: typical 500ms
– Emergency light function: Input &gt30Vdc, &gt24Vac (at 10% nominal power)
– Temperature range: -25 to 65°C
– Overall efficiency: 78 to 86%
– High power factor: 82 to 98% (refer to diagrams)
– Temperature derating: Power reducing at 60°C PCB temperature
– Thermal shutdown: at 80°C PCB temperature to &lt20% of nominal power

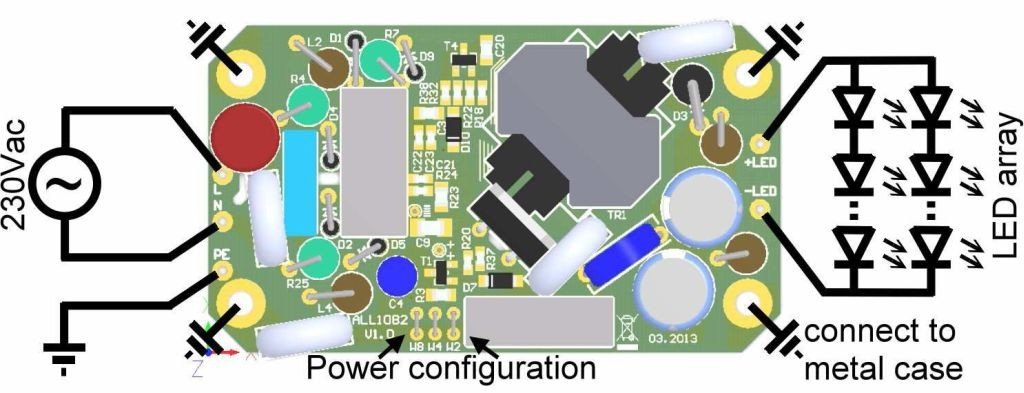

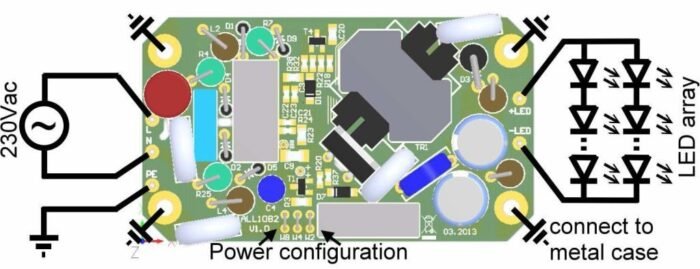

– Outputs connectable in series/parallel to reach higher power/voltage
